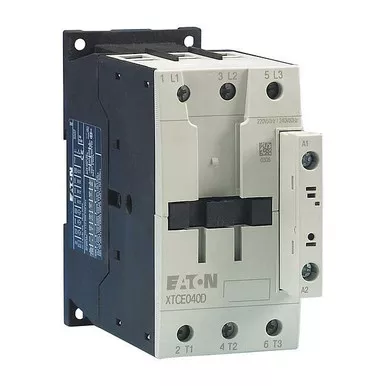

Eaton XTCE040D00B

The Eaton XT IEC contactor is an IEC magnetic, 3-pole, non-reversing switch designed to control power circuits. It uses a 240V AC coil with screw terminals and has no auxiliary contacts. This frame D device is part of the XT series and supports mounting on a DIN rail or panel. It is rated for operation within the specified voltage and frequency ranges; contains a surge suppression component (if applicable); and is supplied without an enclosure (if applicable). Certifications include UL Listed, CSA Certified, CE Marked, EN 60947, IEC 60947, and RoHS.- Poles: 3 – Action / Reversing: Non-Reversing; Reversing: N/A – Coil voltage: 240 V AC – Amperage (full load): 40 A inductive; 60 A resistive – Auxiliary contacts: No – Contact configuration: 0 NO, 0 NC – Electrical connection: Screw terminals – Frame / Series / Code: Frame D; Series XT – Frequency: 50/60 Hz – Maximum voltage rating: 690 V AC – Surge suppression: contains a surge suppression component (if applicable) – Enclosure / IP rating: No Enclosure; IP20 – Mounting style: DIN Rail, Panel – Dimensions (W×H×D): 2.17 in × 4.09 in × 5.78 in – Mounting hole: diameter 0.16 in; hole distance (height × width): 4.13 in × 1.77 in – Standards: UL Listed; CSA Certified; CE Marked; EN 60947; IEC 60947; RoHS – Reversing: N/A – HP rating (3-phase at 240V): Conforms to industry standards for motor ratings at specified voltages
