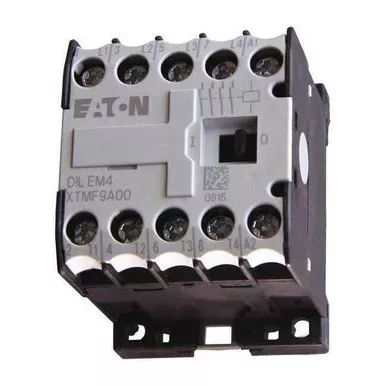

Eaton XTMF9A00TD

The Eaton XT IEC mini contactor is an IEC miniature magnetic contactor with four poles and a 24 V DC coil. It is rated for operation with non-reversing action and uses screw terminals, with no auxiliary contacts. The XT series is UL Listed, CSA Certified, CE Marked, EN 60947, IEC 60947, and RoHS certified.- Coil Voltage: 24 V DC – Action: Non-Reversing – Poles: 4 – Amperage Rating: 8.80 A – Auxiliary Contacts: No Auxiliary Contacts – Termination: Screw Terminals – Embedded Surge Suppressor: Yes – IP Rating: IP20 – Mounting Style: DIN Rail, Panel – Mounting Position: Vertical – Frame Size / Series: Frame A / XT – Maximum Voltage Rating: Rated for use within voltage ranges up to 690V AC/DC – Product Dimensions: Width 1.77 in; Height 1.5 in; Depth 2 in – Certifications: UL Listed; CSA Certified; CE Marked; EN 60947; IEC 60947; RoHS
