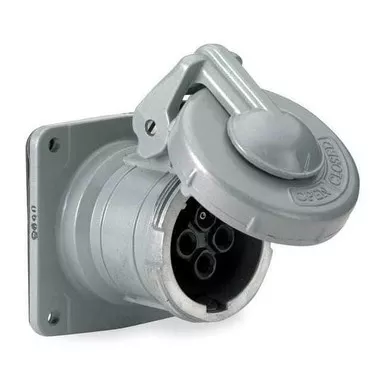

Hubbell Wiring Device-Kellems HBL4100RS1W

The HUBBELL Pin and Sleeve Receptacle is a watertight electrical device suitable for use in industrial settings where high-capacity electrical connections are needed. Rated for 100A and up to 600VAC, this receptacle features a combination of metallic shrouding with a non-metallic Valox 357 housing to provide both durability and moisture resistance. The unit includes a spring-loaded cover with gasket intended to limit dust ingress.Key Features of the HUBBELL Pin and Sleeve Receptacle: Current/Voltage Rating: 100A, 600VAC/250VDCBody Material: Valox 357housing with aluminum shroudCord/Wire Size Compatibility: Accepts 3 AWG to 1/0 AWG wire; cord size range from 4 to 2 AWGNEMA Enclosure Rating: Type 4X (watertight, moisture )Connection Orientation: Straight with screw terminal connectionsCap Type: Spring-loaded cap with neoprene gasket designed to limit water ingressFlammability Rating: UL 94 V-0 enclosure materialOperating Temperature Range: -40°C to +75°C continuous operationPole/Wire Configuration: Three poles, four wires; grounded (Style 1 grounding)Standards Compliance: CSA Certified (C22.2 No.182.1), UL Listed Type 4X per UL Standard 1682Resistance Properties: Construction includes features rated for impact resistance per manufacturer specifications
