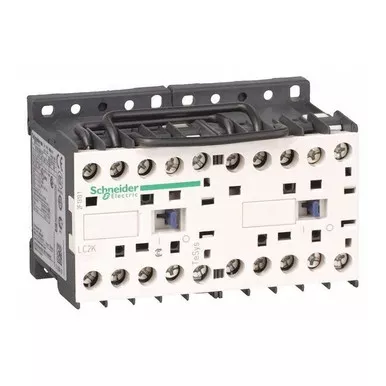

Schneider Electric LC2K1210B7

The SCHNEIDER ELECTRIC IEC Magnetic Contactor is a reversing, 3-pole switching device with a 24 V AC coil. Rated for operation within the specified voltage and current ranges. It is part of the TeSys K family and complies with IEC standards for styling and mounting (if applicable) for panel assemblies.- Action: Reversing – Poles: 3P – Coil Voltage: 24 V AC – Main Contacts: 3 NO – Auxiliary Contacts: No Auxiliary Contacts – Frame/Series: TeSys K – Contactor Style: IEC – Maximum Voltage (Power circuit): Rated for operation up to specified maximum voltage and frequency limits – Rated Currents: Rated for specified current ranges under typical conditions – Ambient Operation/Storage: Suitable for ambient temperature ranges specified; actual performance may vary outside these conditions – IP/Enclosure: Meets IP20 rating; does not include a protective enclosure – Mounting: Compatible with DIN rail or plate mounting methods as per manufacturer specifications – Dimensions (W x H x D): 3.54 in × 2.28 in × 2.24 in (physical dimensions of the product only) – Net Weight: 0.39 kg – Protection/Durability:- Impulse withstand voltage of up to 8 kV according to testing standards- Hold-in power consumption approximately 4.5 VA- Inrush power consumption approximately up to 30 VA – Insulation/Impedance:- Insulation resistance typically exceeds standard values at rated voltages – Certifications:CB Scheme; CCC; UL; CSA; EAC; CE; UKCA
