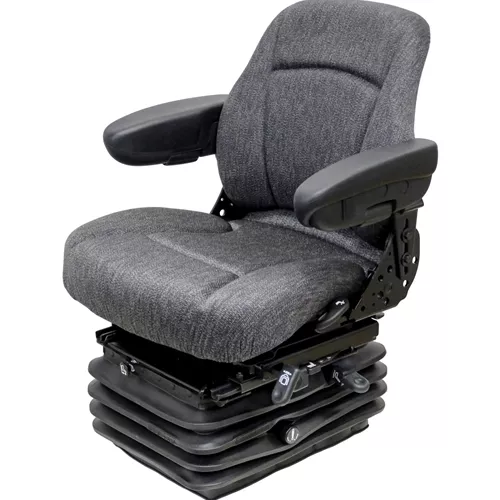

Features:
- Durable Tuff-tex fabric covering
- Air suspension with self-contained 12-Volt compressor
- Reclining backrest
- Adjustable lumbar support to help prevent lower back pain
- Fore and aft isolator which can be disabled to help absorb shock
- Height and weight adjustment for individual fit
- Padded tilt-up armrests with angle adjustment
- Adjustable slide rails with 5″ of travel
- Side-to-side lateral isolator
- Comes standard with operator presence switch
- Durable suspension cover to keep components free of dirt and dust
Suspension footprint is 9.4″ wide x 9.2″ deep with 8mm attaching bolts. Available Color Options:
- Charcoal Gray Fabric (PN: 7612)
- Brown Fabric (PN: 8165)
Available Options:
- 2″ Retractable Seat Belt Kit (PN: 7977)
- 3″ Retractable Seat Belt Kit (PN: 8417)
Available Maintenance Items (ONLY FIT THE K&M SEAT ASSEMBLY):
- Replacement LH Armrest Kit (PN: 8140*)
- Replacement RH Armrest Kit (PN: 8141*)
- Replacement Seat Top Assembly in Charcoal Gray Fabric (PN: 8792)
- Replacement NEW STYLE Backrest Cushion in Charcoal Gray Fabric (PN: 8540)
- Replacement NEW STYLE Seat Cushion in Charcoal Gray Fabric (PN: 8541)
- Replacement OLD STYLE Backrest Cushion in Charcoal Gray Fabric (PN: 8139)
- Replacement OLD STYLE Seat Cushion in Charcoal Gray Fabric (PN: 8138)
- Replacement OLD STYLE Backrest Cushion in Black Vinyl (PN: 8163)
- Replacement OLD STYLE Seat Cushion in Black Vinyl (PN: 8162)
- Replacement Double-Locking Slide Rails (PN: 8279)
- Replacement Air Switch Kit & Skirt Clips (PN: 8705)
- Replacement Air Switch Kit (PN: 7980)
- Replacement 12-Volt Air Suspension (PN: 8130)
- Replacement 12-Volt Compressor Wire Harness Kit Necessary with Part Number 8119 (PN: 8120)
- Replacement 12-Volt Compressor Kit (PN: 8119)
- Replacement Airbag Kit (PN: 8145)
- Replacement Air Hose Kit (PN: 8367)
- Replacement Fore/Aft Isolator Knob (PN: 8368)
- Replacement Fore/Aft Isolator Latch Assembly (PN: 8252)
- Replacement Lateral Isolator Lock Service Kit (PN: 8253)
- Replacement Shock Absorber Kit (PN: 8684)
- Replacement Suspension Roller Kit (PN: 8427)
