| Cylinder Bore Size | 3.5 Inch |
|---|---|
| Cylinder Stroke | 8 Inch |
| ASAE Design | ASAE |
| Port Thread | ORB |
| PSI Rating | 3000 PSI |
| Port Thread Size | SAE 8( 3/4-16 ORB ) |
| Rod Diameter | 1-1/4 Inch |
| Closed Center to Center Dimension | 20-1/4 Inch |
| Clevis Pin Diameter | 1 Inch |
| Product Category | Hydraulic Cylinder |
| Brand | AgSmart |
| Replacement Seal Kit | 197-90006 |
| Interchange Numbers | 847810088169, TQ-35A-08, TQ-35A-08-CF |
AgSmart Hydraulic Cylinder – 3-1/2″ x 8″, 3000 PSI, ASAE
Original price was: $279.19.$183.33Current price is: $183.33.
Sale!Related products
Sale!
Cross Hydraulic Cylinder 410DB – 4″ x 10″, 1-1/4″ Rod
Original price was: $343.99.$203.04Current price is: $203.04.
Sale!
Cross Hydraulic Cylinder 2514DB – 2-1/2″ x 14″, 1-1/16″ Rod
Original price was: $255.19.$132.80Current price is: $132.80.
Sale!
AgSmart Hydraulic Cylinder Clevis Pin – 1″ Diameter x 4″ Length
Original price was: $9.59.$7.58Current price is: $7.58.
Sale!
Cross Hydraulic Cylinder 310DB – 3″ x 10″, 1-1/4″ Rod
Original price was: $234.39.$131.58Current price is: $131.58.
Sale!
Cross Hydraulic Cylinder 318DB – 3″ x 18″, 1-1/4″ Rod
Original price was: $291.19.$207.77Current price is: $207.77.
Sale!

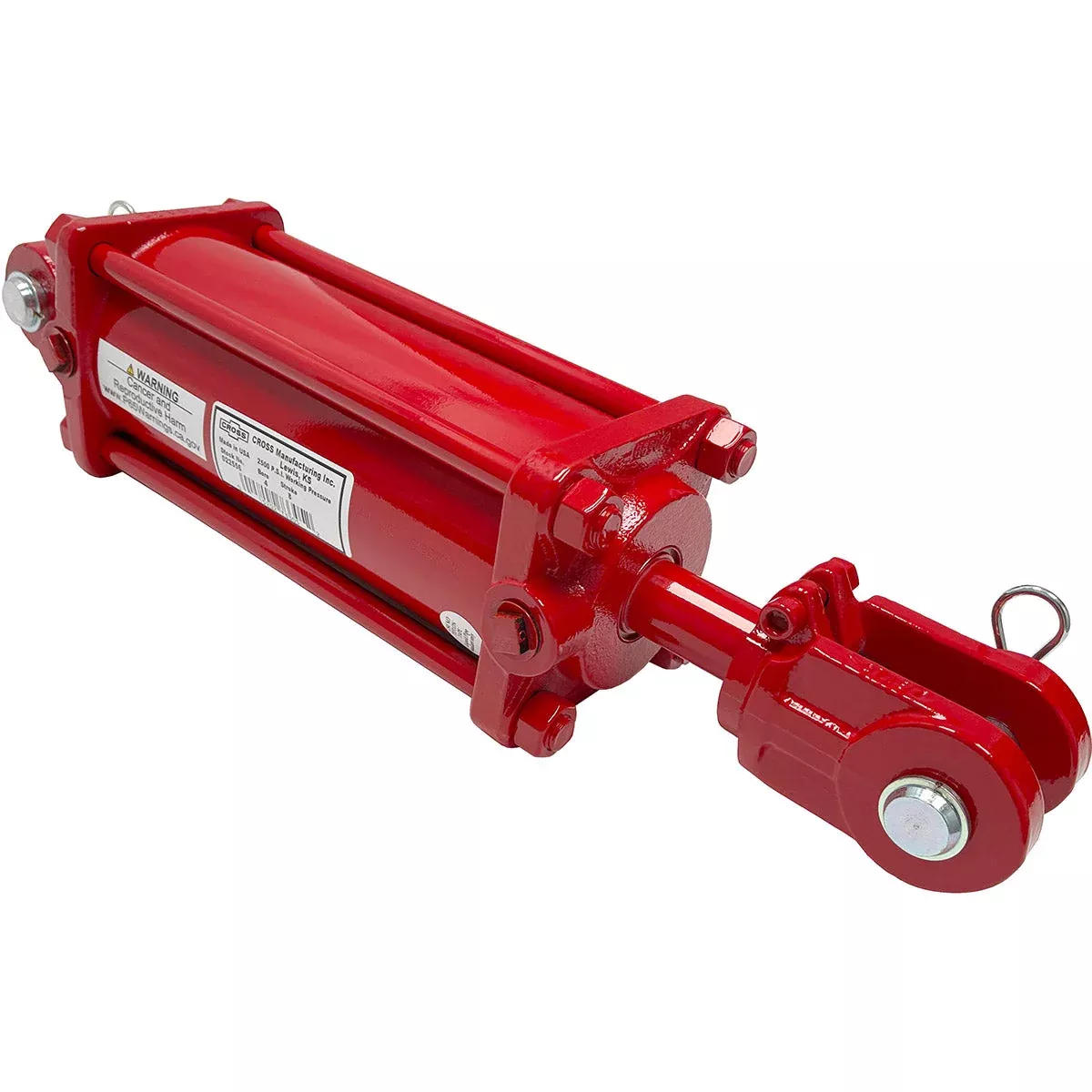

Cross Hydraulic Cylinder 416DB-ASAE – 4″ x 16″, 2″ Rod
